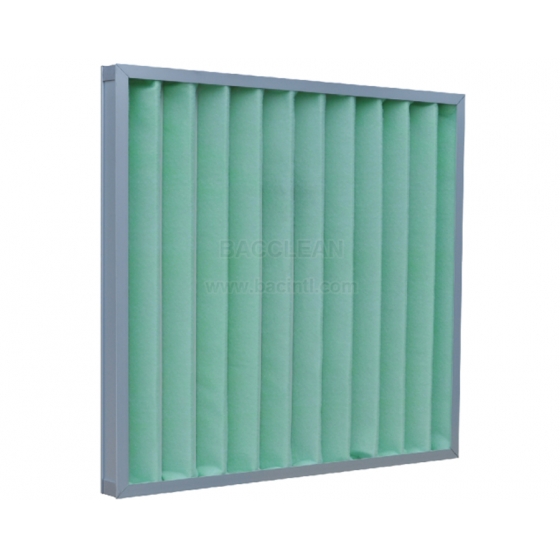

Replaceable Pleat Filter

A pleated filter is designed as a folding pattern to increase the filter’s surface area for more dust, allergens, and mold to get trapped in. It offers a much higher level of filtration than the standard filters, and it is more efficient at capturing microscopic airborne particles than the non-pleated filters. Pleated filters can work longer and are very durable, and is capable of removing much smaller particles from the air. The replaceable pleat filter adopts excellent washable filter material, which can be washed for many times.


Features

1. It can be washed and reused many times, with a long working time.
2. The fluffy and denser fiber structure effectively extends the life of the rear-end medium filter.
3. The reinforcing bars of the filter further enhance the firmness of the filter,and the minimum resistance reaches the maximum dust capacity.
4. The outer frame is designed with removable, which is convenient replacement of filter media to achieve the purpose of the frame reused.
5. Removable type aluminum alloy frame, with the aluminum alloy feet fixed. The structure is firm and stable, ensuring that the filter will not be deformed or damaged under the poor working environment.



Material

1. Medial material:Non-woven filter cotton
2. Aluminum optional thickness(mm): 46/50/69/80/90/96
3. Efficiency: 45%~95%@2.0μm
4. Max operating temperature: 80 degree centigrade
5. Max operating humidity: 100%
6. Frame material: Aluminum /Galvanized steel



Specifications
