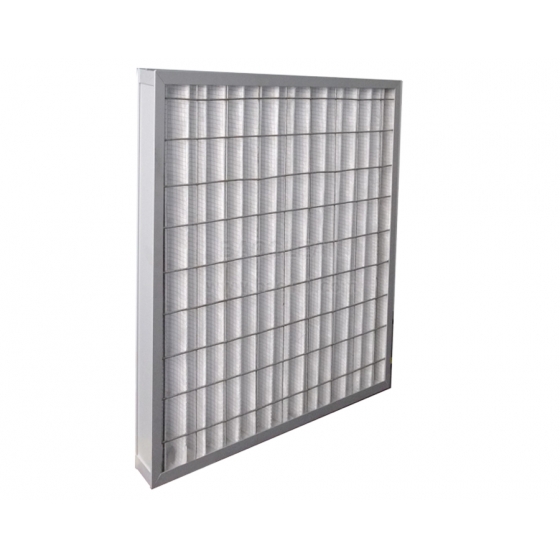

Pleated Filter

A pleated filter is designed as a folding pattern to increase the filter’s surface area for more dust, allergens, and mold to get trapped in. It offers a much higher level of filtration than the standard filters, and it is more efficient at capturing microscopic airborne particles than the non-pleated filters. Pleated filters can work longer and are very durable, and is capable of removing much smaller particles from the air.


Product feature

1, Surface mesh adopt rust treatment process,with good appearance and duration.
2, Large media area
3, Save space
4, Adopted the synthetic fiber material, reasonable structure, large dust holding capacity and stable performance.
5, 100% factory inspection
6, Adopted the optimized “V” shaped filter bag structure, large air volume, low resistance and long service life.
7, It can be washed and reused . (this may cause the result that the product performance will be changed a little, the efficiency will be decreased, and the wind resistance will be increased. )
8, Not easily deformed and damaged, suitable for poor working conditions



Material

1. Medial material:Synthetic fiber
2. Aluminum optional thickness(mm): 17/21/25/46/50/90/96
3. Efficiency: 45%~95%@0.5μm
4. Max operating temperature: 80 degree centigrade
5. Max operating humidity: 100%
6. Frame material: Aluminum /Galvanized steel
