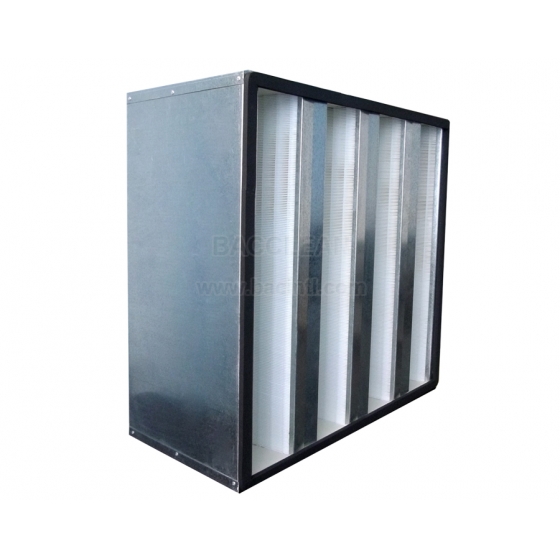

V bank Filter With Galvanized Frame

The V bank filter has a higher efficiency filtration at low energy consumption. With the V style, it has not only more surface area than pocket filters, but also higher winds at lower resistance. And it is widely used in the final filtration of air conditioning system and preparatory filtration in clean rooms as its high dust holding capacity design.
The V bank filter with galvanized frame is painted by metal mesh so that it can be put in front of the HEPA media pack, which does a great of help to remove damage away.



Product Feature

1. The efficiency of capturing dust particles of 0.3μm is up to 99.99%.
2. It can withstand large air volume, with the unique frame V-shaped structure which can minimize structural resistance.
3. Compact structure, also it can be equipped with flange. Easy to install and maintain.
4. With the unique sealing technology that has good elasticity, no deformation, no falling off, and won’t air leak when installed and used.
5. 100% of the whole product inspection factory.
6. Big filter area, low resistance, long service life, large dust capacity,light weight.



Material

1. Medial material:Glass fiber/Active carbon granule(ACG)
2. Frame material: galvanized
3. Gasket material:EVA
4. Optional thickness(mm):292
5. Sealant: Put two-component polyurethane glue
6. Max operating temperature: 70 ℃
7. Max operating humidity: 100%
8. Separator:EVA hot melt adhesive



Specifications
