High Heat Resistance Pleated Filter

High temperature filters can withstand a high temperature up to 300 ℃ for a long time, they use the double-sided filter media which is folded by galvanize wire mesh or stainless steel mesh, and has good strength., as a result of this, the media material is not easily to be blown broken.These filters are made of special components which can ensure the filters to retain their form and function well at extreme high temperatures.They are widely used in high fire requirements and high temperature environment ventilation system end filter.


Product Features

1. Large air volume, low resistance, low moisture absorbing and the operating temperature is up to 300 degree centigrade.
2. Double sided with the galvanized steel square grid, galvanized steel diamond mesh, stainless steel square grid to reinforce, this can be used normally in the large air volume environment.
3. It is easy to be used in the large filtration area ,and it can be used over a long period of time.
4. 100% factory inspection.



Application

It can be used in general primary filtration, hot air type high temperature oven air filtration and coating factory high temperature oven air filter.


Material

1. Frame material: Aluminum /Stainless steel
2. Medial material:Glass fiber
3. Aluminum optional thickness(mm): 17/21/25/46/50/69/90/96
4. Efficiency: 85%@2.0μm
5. Max operating temperature: 300 degree centigrade
6. Max operating humidity: 100%

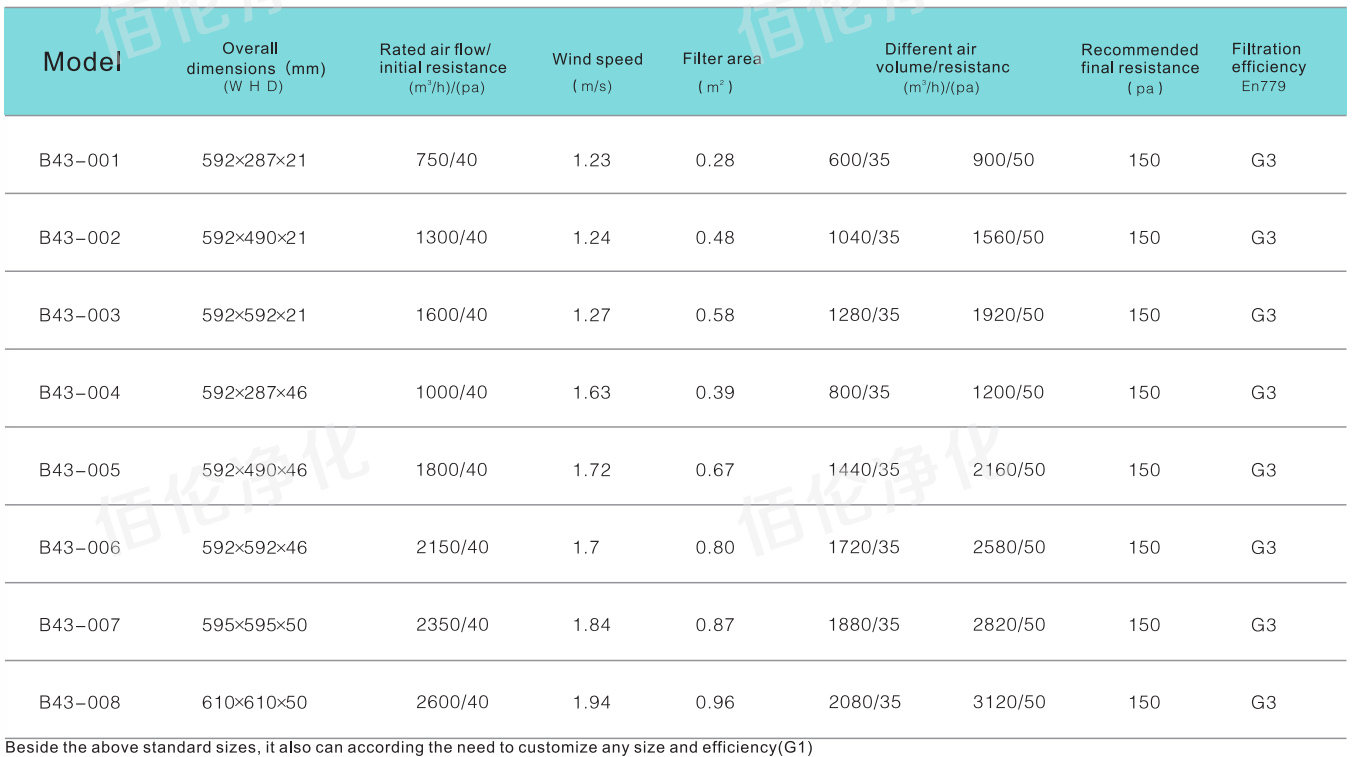

Specifications
