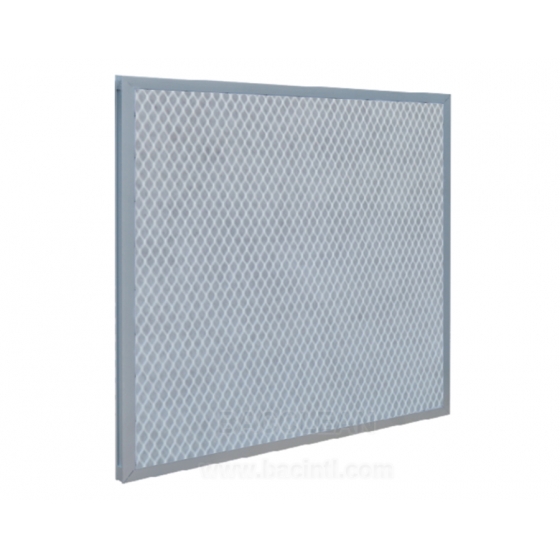

Panel Filter

Panel filters adopt an electrostatic process device with High Air Flow media to remove the dust and moisture away from air. They can not only improve indoor air quality, but also protect the equipment against the damage from the contaminants. They are widely used in the environment with limited environment and large air volume, what is more, they are applied to the primary filtration of air conditioning systems and the pre-filtration of multi-stage filtration systems.



Features

1. The filter is low initial pressure drop and high dust holding capacity.
2. The filter media inside the frame can be unfolded or pleated.
3. To supply in paper or metal frames as aluminum or galvanized.
4. Easy to be changed and the metal frame panel filters can be washed reused.
5. Easy clean,convenient replacement,strong structure,big air volume,low resistance,high dust holding capacity etc.



Material

1. Medial material:Non-woven filter cotton
2. Aluminum optional thickness(mm): 10/17/21/25
3. Efficiency: 40%~90%@2.0μm
4. Max operating temperature: 80 degree centigrade
5. Max operating humidity: 100%
6. Frame material: Aluminum /Galvanized steel
7. Sealant: White latex / Universal glue



Specifications
