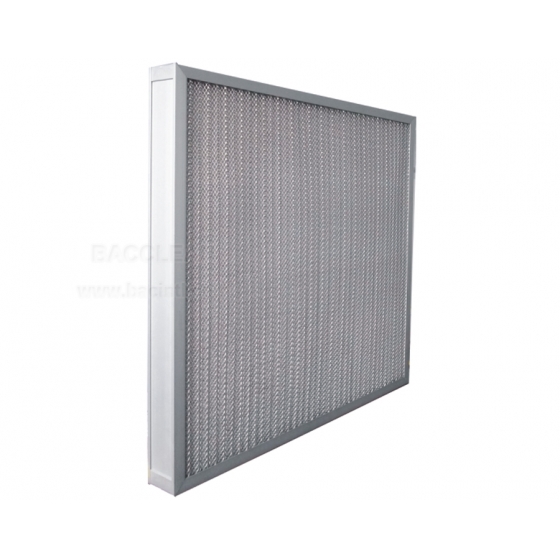

Metal Net Filter

The mesh materials adopt extended and pleated multilayer aluminum or stainless steel which can be rolled into wavy shape and cross-laminated based on certain angle. The metal mesh air filters, which has integrated EMI shielding capabilities, can provide a semi-permanent, cleanable air filtration solution. They are widely used to capture large objects and can be washed many times.They are applied to indoor air processor and other filtration equipment with large air volume. And suitable for ventilation and filtration in special acid-resistant or high-temperature places. Also they can be used for home air conditioning, primary filtration of central air conditioning, primary air filtration for clean room and so on,


Material

1. Medial material: Aluminum pressure wave net/ Stainless steel pressure wave net
2. Frame material: Aluminum / Stainless steel /Galvanized steel
3. Aluminum optional thickness(mm):17,21,25,46,50,69
4. Max operating temperature: 300℃
5. Max operating humidity:100%
6. Protecting wire net: Galvanized square grid / Stainless steel square grid



Advantages

1. Aluminum frame will reduce the frequency of cleaning and maintenance.
2. Multi-layer corrugated aluminum mesh, low initial pressure drop, high dust-holding capacity and long service life.
3. Light in weight, compact in structure, easy to install.
4. Can be washed repeatedly with compressed air or cleaning fluid.
5. Good fireproof property, greatly reduce the risk of fire.
6. Good heat dissipation property, extend the life of the fan motor.



Specifications
