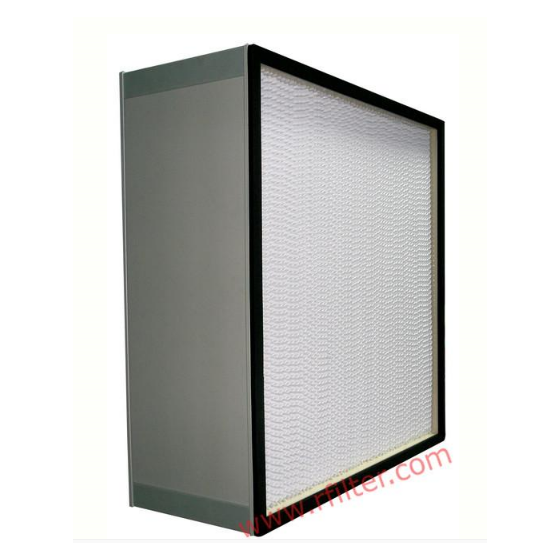

Cardboard Separator HEPA Filter H14

The separator HEPA filters have a rigid construction which can meet high air flow rate condition because of their box style design. Its media material adopts a diameter of 0.1~ 5um super fine Glass fibre, which has the characteristic of  lower pressure drop, more dust holding and longer service life. The applicable efficiency is rang of F5,F6,F7,F8,F9,H10,H13,H14. It can be widely used in hospitals, food processing, semiconductor, pharmaceutical, electronics and other industries.

The cardboard separator filter has the characteristics of high efficiency, low resistance, and good wind speed uniformity, so it is widely used in high-level purification equipment, purification system end filter parts, partial purification equipment and cleanliness.



Product Features

1. Adopted the corrugated partition plate to accurately maintain the pleat spacing, and the support is reliable and stable.
2. The filter media is folded 180 degrees on both sides and folded into a wedge-shaped pleat, so that it can prevent damage to the filter material.
3. With the unique sealing technology that has good elasticity, no deformation, no falling off, and won’t air leak when installed and used.
4. large dust holding capacity, large filtration area, large air volume, high efficiency, high humidity resistance up to 100%, long life.
5. Strong versatility and easy installation.
6. Separator design.



Material

1. Medial material:Glass fiber
2. Frame material: Aluminum /Stainless steel/MDF/Galvanized steel
3. Gasket material:EVA / Neoprene
4. Aluminum optional thickness(mm):80/96/120/150/220/292
5. Sealant: Put two-component polyurethane adhesive
6. Max operating temperature: 80℃
7. Max operating humidity:80%
8. Separator: 120g/㎡ rubber sheet paper



Specifications

Model	Overall dimensions(mm) (WxHxD)	Rated airflow/ initial resistance(m³/h)/(pa)	Wind speed (m/s)	Filter area (m²)	Filtration efficiency
B56-B01	610*1220*120	1500/230	0.55	14.1	H13
B56-B02	610*610*150	1000/230	0.75	9.6	H13
B56-B03	610*915*150	1500/230	0.75	14.4	H13
B56-B04	484*484*220	1000/230	1.17	9.5	H13
B56-B05	610*610*220	1600/230	1.18	15.1	H13
B56-B06	610*610*292	2200/230	1.64	21	H13
B56-B07	610*610*292	3300/105	2.46	21	F8
B56-B08	610*915*292	4950/105	2.46	13.6	F8
