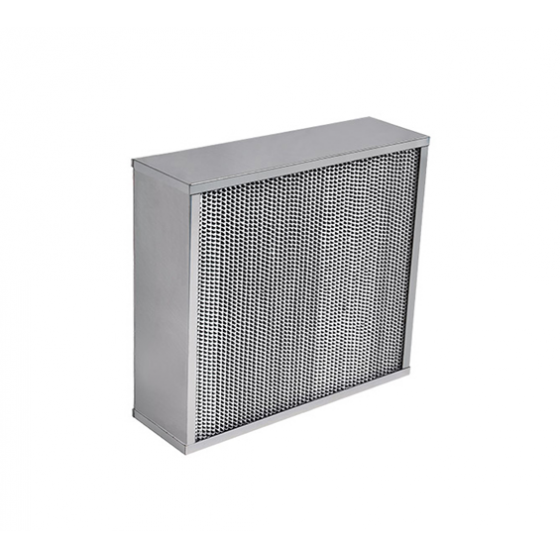

Aluminum Separaator HEPA Filter

The separator HEPA filters have a rigid construction which can meet high air flow rate condition because of their box style design. Its media material adopts a diameter of 0.1~ 5um super fine Glass fibre, which has the characteristic of  lower pressure drop, more dust holding and longer service life. The applicable efficiency is rang of F5,F6,F7,F8,F9,H10,H13,H14. It can be widely used in hospitals, food processing, semiconductor, pharmaceutical, electronics and other industries.

The aluminum separator filter has the advantages of large air volume, strong structure, impact resistance, large air volume, and good appearance. It is mainly used in the medicine, food, and pharmaceutical industries with high hygiene requirements. Especially for air purification in high humidity environments such as medical infusion production.


Product Features

1. Adopted the corrugated partition plate to accurately maintain the pleat spacing, and the support is reliable and stable.
2. The filter media is folded 180 degrees on both sides and folded into a wedge-shaped pleat, so that it can prevent damage to the filter material.
3. With the unique sealing technology that has good elasticity, no deformation, no falling off, and won’t air leak when installed and used.
4. large dust holding capacity, large filtration area, large air volume, high efficiency, high humidity resistance up to 100%, long life.
5. Strong versatility and easy installation.
6. Separator design.



Material

1. Medial material:Glass fiber
2. Frame material: Aluminum /Stainless steel/MDF/Galvanized steel
3. Gasket material:EVA / Neoprene
4. Aluminum optional thickness(mm):80/96/120/150/220/292
5. Sealant: Put two-component polyurethane adhesive
6. Max operating temperature: 80℃
7. Max operating humidity:80%
8. Separator: Aluminum
