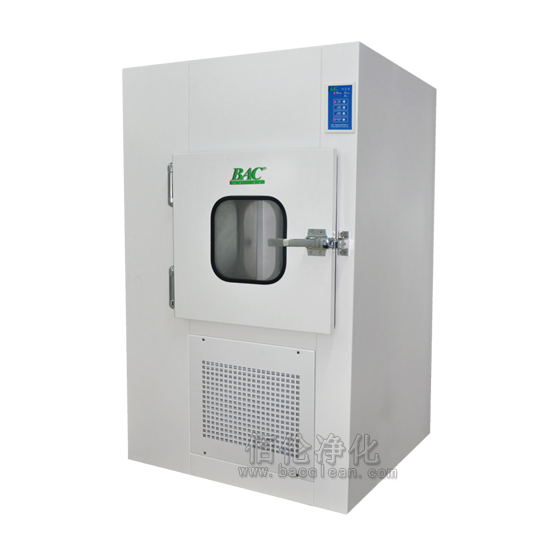

Pass Box With Air Shower

pass box with air shower is a cubicle box with two automatic interlocked doors on both sides, which can prevent crossing infection between the clean area and the unclean area, and the two doors cannot be opened at the same time. It use high quality material such as cold board spraying and stainless steel. And the working area is made of sanded stainless steel which is smooth and wearable. What is more, it is equipped with high efficiency mini pleat HEPA filter whose efficiency is up to 99.99%, and the large air volume and low noisy fan to reduce dust. As a result of this, contamination can be minimized during transportation. What is more, the time for operators moving in and out can be reduced a lot in order to prevent any dust coming from the unclean area. It is suitable for cargoes to transfer from clean areas to unclean areas or from low clean areas to high clean areas.


Product Features:

1. Designed in double door style with machinery or electronic interlock device.
2. It is in high cleanliness with the system of primary filter and HEPA filter.
3. It is at high wind speed with large air volume and low noise.
4. It is more easier and convenient to convey by no power roller.
5. Easy to install and maintain.
6. It is a transfer channel for items to isolate different areas.

Applications

Electronics, Microelectronics, precision instruments, medicine, SMT, food processing, and dust-free spraying.


Specifications

All sizes and styles can be customized
Model		BACCLEAN-ASPB01	BACCLEAN-ASPB02	BACCLEAN-ASPB03
External size(mm)		940*600*1450	1090*750*1600	1140*800*1650
Internal size(mm)		600*600*600	750*750*750	800*800*800
Number of nozzles(pcs)		4	6	6
Noise dB(1m from the device)		≤63
Fan	Power supply(V/Hz)	380/50
	Power(W)	550
	Air volume(m³/h)	1200
	Rotating speed(r/min)	2800
HEPA filter(mm)		484*484*69	630*630*69	630*630*69
Pre-filter(mm)		525*275*17	675*275*17	725*275*17
