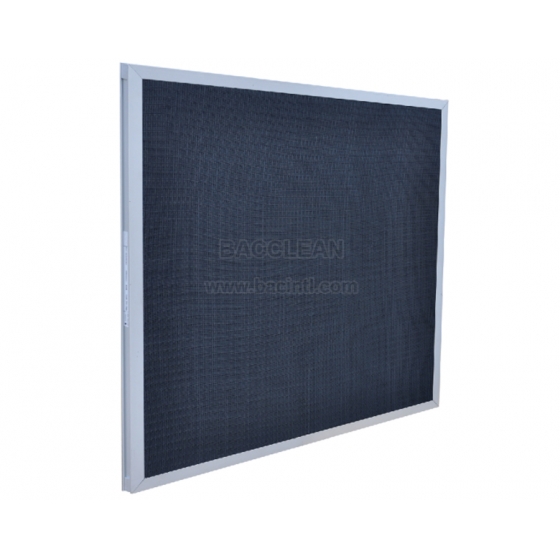

Nylon Filter

Nylon is a hydrophilic yet solvent-resistant membrane which are strong and flexible, and therefore widely used for filtering. Nylon mesh air filter is woven by poly-ammonia monofilament fiber and integrated with the metal frame. It is made into light-weighted structure and the outer metal frame can be recycled, in addition ,it can be used for washing many times. And it is very easy for people to install and replace it.

Nylon mesh air filter is widely used in Fan Unit, diffuser and the indoor equipment with the large air flow, also applied to the pre-filtration of the air condition system and the cleanroom. Primary filtration and inlet filtration of air condition system ,filtration of ventilation system with special acid &alkaline resistance .


Features

1. Made of P.P fiber textile.
2. High acid and alkali resistance.
3. Low initial pressure drop, cost-effective.
4. Washable and recyclable.
5. High resistance to impact.
6. Efficiency：G1
7. High dust holding capacity
8. Conform to the standard EN779

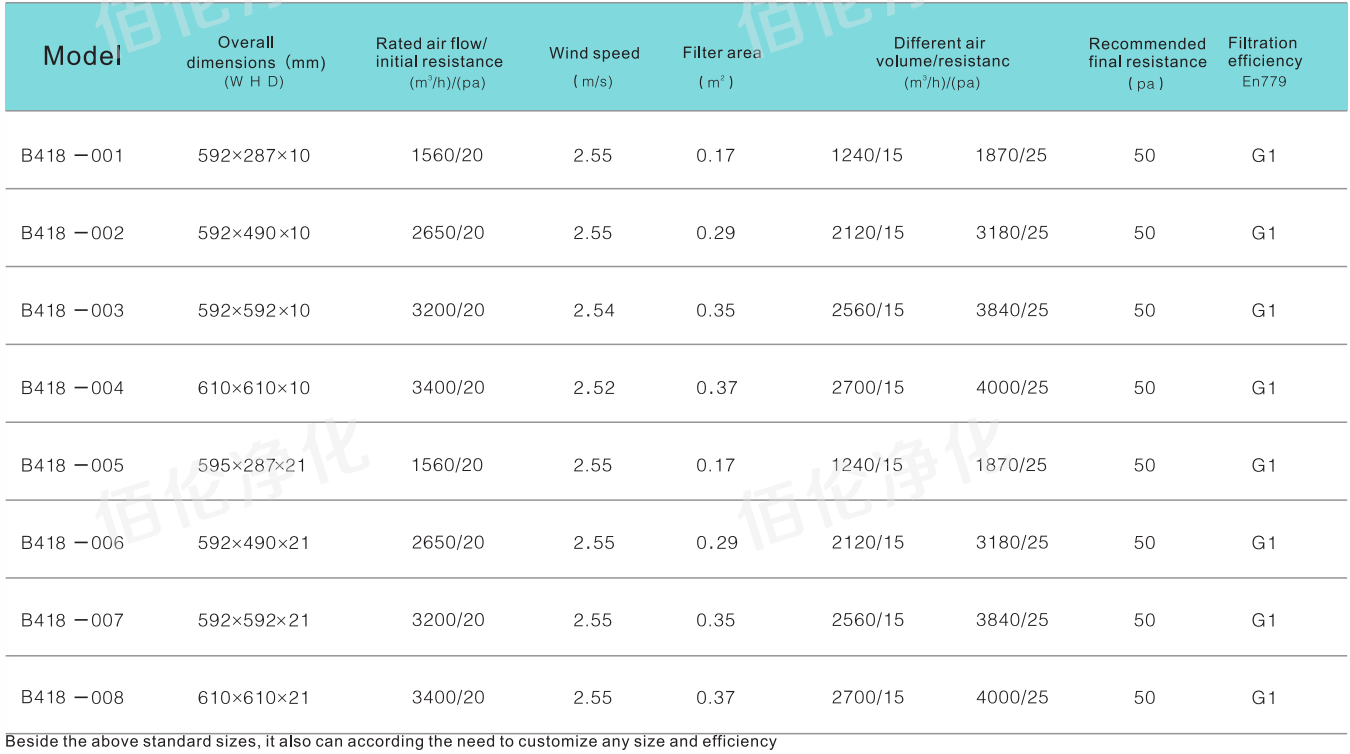

Specification

Frame:Galvanized steel / Aluminum
Medium:Black nylon mesh
Maximum temperature:50°C
Maximum relative humidity:100%
Sealant:White latex/Universal glue
Aluminum optional thickness(mm):10/17/21/25/46
