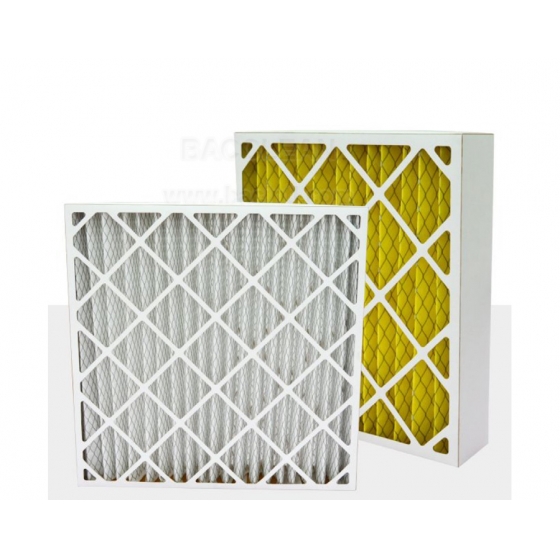

Cardboard Pleat Filter

Cardboard pleated filter
It mainly filter fine dust above 10um, it cost less than other pleated filter.
Filter material: The polyester fiber filter material is treated with a needle technique to form a gradual structure, which has a higher dust capacity and a longer service life


performance

1. long service life, low purchase cost;
2. The outer frame is made of a strong, moisture-proof cardboard frame, which will not deform or break under normal operating conditions;
3. This series of folding scene filters can accumulate larger dust on both sides of the bottom of the folding scene, which can effectively filter other dust; in general, the deeper the folding scene, the longer the service life.
4. Filterable grades: G3, G4, F5, F6, F7, F8.



Application

1. It can be used  in the primary stage of air filtration, before medium and high efficiency filters to extend their wokring life.;
2. It can be used for primary filtration in central air-conditioning, dust-free workshops and other related industries, and used to extend the middle and high-level filters in the back section.



Product feature

1, Surface mesh adopt rust treatment process,with good appearance and duration.
2, Large media area
3, Save space
4, Adopted the synthetic fiber material, reasonable structure, large dust holding capacity and stable performance.
5, 100% factory inspection
6, Adopted the optimized “V” shaped filter bag structure, large air volume, low resistance and long service life.
7, It can be washed and reused . (this may cause the result that the product performance will be changed a little, the efficiency will be decreased, and the wind resistance will be increased. )
8, Not easily deformed and damaged, suitable for poor working conditions



Material

1. Medial material:Synthetic fiber
2. Aluminum optional thickness(mm): 17/21/25/46/50/90/96
3. Efficiency: 45%~95%@0.5μm
4. Max operating temperature: 80 degree centigrade
5. Max operating humidity: 100%
6. Frame material:Cardboard frame



Specifications
